Triumph Bonneville Street Scrambler 2017 – OTR Price: £9,000
Colours:
Jet Black

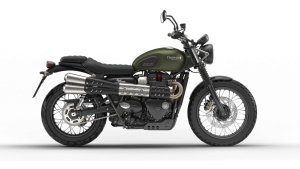

Matt Khaki Green (+ £125)

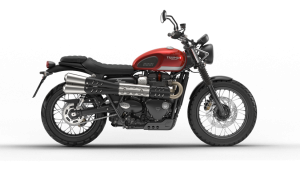

Korosi Red and Frozen Silver (+ £300)
MORE PURPOSEFUL AND READY FOR EVERY ROAD
The all new Street Scrambler has been designed to deliver a more purposeful and beautiful Scrambler style, with unique features and detailing.
Sharing the same contemporary custom principles as the Street Twin, the new Street Scrambler has the iconic Bonneville silhouette combined with clean lines, minimal bodywork, contemporary finishes and sleek fuel tank.
Completing its distinctive style is a host of purposeful scrambler features, including an interchangeable pillion seat and aluminium rear rack, removable pillion pegs and hangers, adventure style front pegs and bash plate.
The dedicated new chassis has longer rear shocks, a 19 inch front wheel, wide handlebars and a low seat height. Fitted with Metzeler Tourance tyres, the new Street Scrambler is designed to deliver real capability and control on every type of road.
Ready to personalise, you can choose from over 150 accessories to add even more off-road attitude and style.
ENGINE AND TRANSMISSION
| Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
|---|---|
| Capacity | 900 cc |
| Bore Stroke | 84.6 mm / 80 mm |
| Compression | 10.55:1 |
| Max Power EC | 55 PS / 54 bhp (40.5 kW) @ 6,000 rpm |
| Max Torque EC | 80 Nm @ 2,850 rpm |
| System | Multipoint sequential electronic fuel injection |
| Exhaust | Brushed stainless steel 2 into 2 exhaust system with twin silencers |
| Final drive | Chain |
| Clutch | Wet, multi-plate assist clutch |
| Gearbox | 5-speed |
CHASSIS
| Frame | Tubular steel cradle |
|---|---|
| Swingarm | Twin-sided, tubular steel |
| Front Wheels | Wire 32-spoke – Steel Rims.19 x 2.5in |
| Rear Wheels | Wire 32-spoke – Steel Rims.17 x 4.25in |
| Front Tyres | 100/90-19 |
| Rear Tyres | 150/70 R17 |
| Front Suspension | KYB 41 mm forks, 120 mm travel |
| Rear Suspension | KYB twin shocks with adjustable preload, 120 mm rear wheel travel |
| Brakes Front | Single 310 mm disc, Nissin 2-piston floating caliper, ABS |
| Brakes Rear | Single 255 mm disc, Nissin 2-piston floating caliper, ABS |
| Instrument Display and Functions | LCD multi-functional instrument pack with analogue speedometer, odometer, gear position indicator, fuel gauge, range to empty indication, service indicator, clock, 2x trip, average & current fuel consumption display, traction control status display, TPMS ready & heated grip ready – controlled by a handlebar mounted scroll button (accessory). |
DIMENSIONS AND WEIGHTS
| Width Handlebars | 831 mm |
|---|---|
| Height Without Mirror | 1120 mm |
| Seat Height | 790 mm |
| Wheelbase | 1446 mm |
| Rake | 25.6º |
| Trail | 109 mm |
| Dry Weight | 206 kg |
| Tank Capacity | 12 l |
FUEL CONSUMPTION
| Fuel Consumption ** | 3.8l/100km (74.4mpg) |
|---|---|
| CO2 figures ** | Norme EURO 4 : 88 g/km **CO2 and fuel consumption are measured according to regulation 168/2013/EC. Figures on fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real riding results. |
