Triumph Bonneville Speedmaster 2018 – OTR Price: £11,650
THE ALL NEW BONNEVILLE SPEEDMASTER features Triumph’s critically acclaimed 1200cc engine, with category leading higher-torque and signature Bobber tune and engine mapping that delivers peak torque of 106Nm at 4,000rpm – a massive 42% more than the 2015 Triumph Speedmaster and up to 10% more than the current Bonneville T120.
Colour Options:

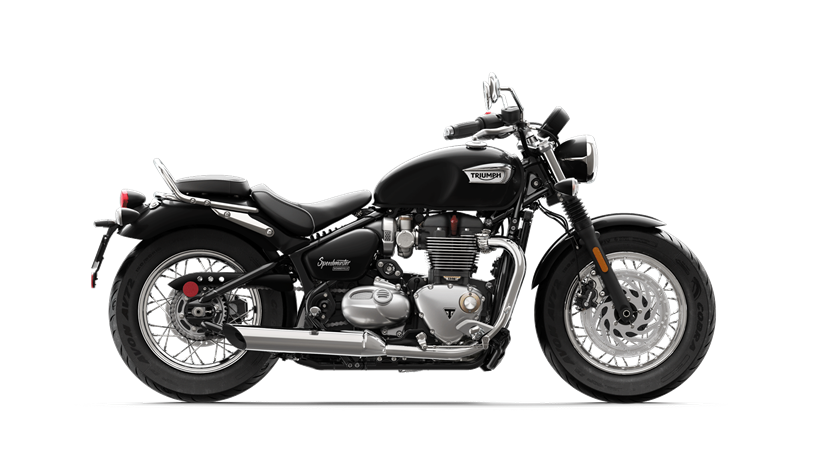

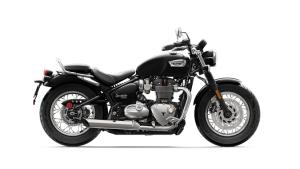

Jet Black

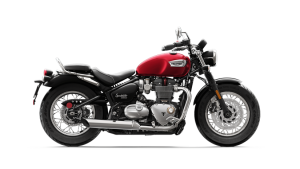

Cranberry Red (+ £125)

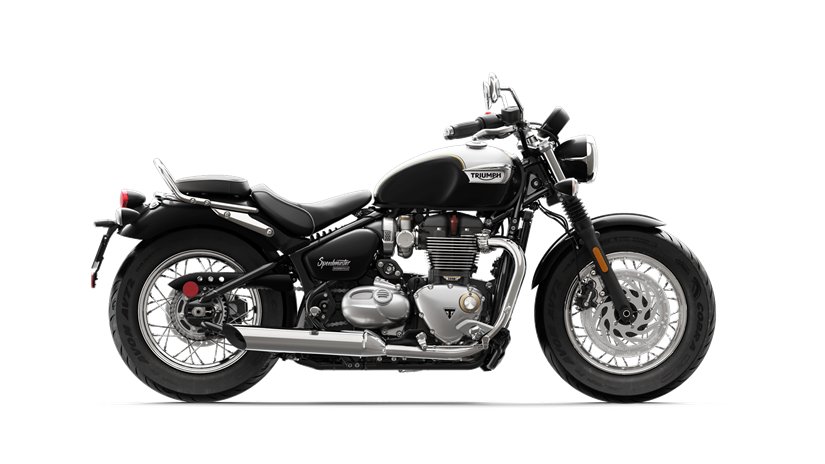

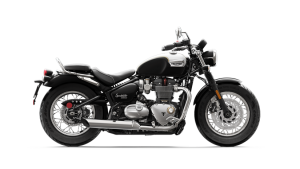

Fusion White and Phantom Black (+£300)
- Switchable traction control
- Ride By Wire
- Road and Rain riding modes
- Torque-Assist Clutch
- Single button cruise control
- Immobiliser
- Full LED headlight with DRL
- Trip Computer
- Versatile twin and single seat set-ups
- Beach bars and forward pegs
- Swing cage for hard tail look
- Low 705mm seat height
- High 10,000 mile/16,000km major service interval
- Twin Brembo front brakes
- 41mm Cartridge forks
- Mono-shock rear suspension unit with stepped preload adjuster
The twin airbox with twin filter design is packaged for optimised volume. The bright chromed stainless steel exhaust system is twin skinned for a seamless hidden cat box run and finished with unique bright chrome silencers, that deliver a distinctive rich and raw exhaust note.
| Max Power EC | 77 PS/ 76 Bhp (57 kW) @ 6,100 rpm |
|---|---|
| Max Torque EC | 106 Nm @ 4,000 rpm |
| Brakes Rear | Single 255 mm disc, Nissin single piston floating caliper, ABS |
| Brakes Front | Twin 310 mm disc, Brembo 2-piston floating calipers, ABS |
| Front Suspension | KYB 41 mm forks with cartridge damping. 90mm travel. |
| Rear Suspension | KYB monoshock with linkage and stepped preload adjuster, 73.3 mm rear wheel travel. |
ENGINE AND TRANSMISSION
| Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
|---|---|
| Capacity | 1200 cc |
| Bore Stroke | 97.6 / 80mm |
| Compression | 10.0:1 |
| Max Power EC | 77 PS/ 76 Bhp (57 kW) @ 6,100 rpm |
| Max Torque EC | 106 Nm @ 4,000 rpm |
| System | Multipoint sequential electronic fuel injection |
| Exhaust | Chromed stainless steel 2 into 2 twin-skin exhaust system with chromed stainless silencers |
| Final drive | Chain |
| Clutch | Wet, multi-plate assist clutch |
| Gearbox | 6-Speed |
CHASSIS
| Frame | Tubular steel cradle |
|---|---|
| Swingarm | Twin-sided, tubular steel |
| Front Wheels | 32-spoke, 16 x 2.5in |
| Rear Wheels | 32-spoke, 16 x 3.5in |
| Front Tyres | 130/90 B16 |
| Rear Tyres | 150/80 R16 |
| Front Suspension | KYB 41 mm forks with cartridge damping. 90mm travel. |
| Rear Suspension | KYB monoshock with linkage and stepped preload adjuster, 73.3 mm rear wheel travel. |
| Brakes Front | Twin 310 mm disc, Brembo 2-piston floating calipers, ABS |
| Brakes Rear | Single 255 mm disc, Nissin single piston floating caliper, ABS |
| Instrument Display and Functions | LCD multi-functional instrument pack with analogue speedometer, odometer, gear position indicator, fuel gauge, range to empty indication, service indicator, clock, 2x trip, average & current fuel consumption display, traction control status display, heated grip ready – controlled by a handlebar mounted scroll button. |
DIMENSIONS AND WEIGHTS
| Width Handlebars | 770 mm |
|---|---|
| Height Without Mirror | 1040 mm |
| Seat Height | 705 mm |
| Wheelbase | 1510 mm |
| Rake | 25.3 º |
| Trail | 91.4 mm |
| Dry Weight | 245.5 Kg |
| Tank Capacity | 12L |
FUEL CONSUMPTION
| Fuel Consumption ** | 4.3 l/100 km (65.4 MPG) |
|---|---|
| CO2 figures ** | EURO 4 Standard: 98 g/km **CO2 and fuel consumption are measured according to regulation 168/2013/EC. Figures on fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results. |
