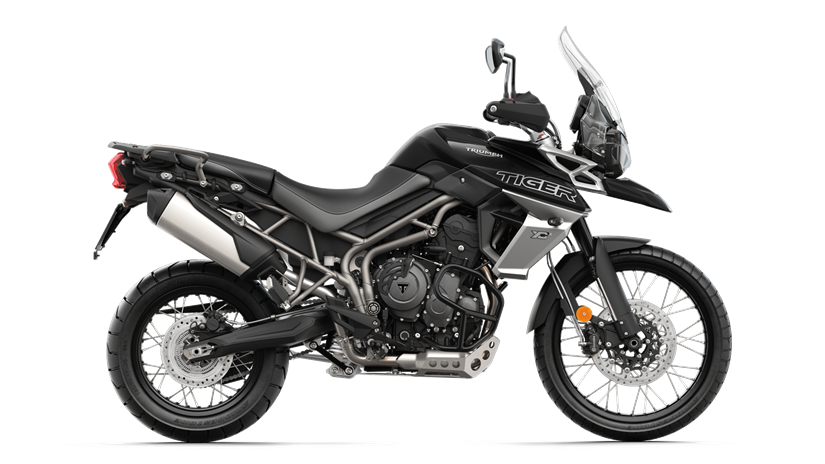

Triumph Tiger 800 XCX 2018 – OTR Price: £11,400.00

The superb Tiger 800 XCX can take on any adventure, giving you one of the most off-road focused set-ups ever seen on a Triumph Tiger 800.

Colour Options

Jet Black

Crystal White (+£150)

 Lucerne Blue (+£150)

Matt Khaki Green (+£150)

Seat height 840 – 860 mm

  • Thrilling new generation 800cc engine providing more power and torque low down
  • Lower ratio 1st gear improving acceleration and off-road traction
  • Lighter, freer-flowing exhaust
  • New ‘Off Road Pro’ riding mode
  • Full colour 5” TFT display instruments
  • LED Daytime Running Light DRL set-up
  • 5 riding modes: Off road pro, road, rain, off road and sport
  • Brembo premium front brakes
  • Premium Adjustable WP front and rear suspension
  • 5 position screen and aero deflectors
  • Updated Cruise Control
  • Laced wheels including 21” front
  • Bridgestone Battlewing tyres
  • Switchable ABS and Traction Control
  • Engine Protection Bars
  • Aluminium sump guard
  • Aluminium radiator guard
  • Tailored ergonomics – adjustable seat height, handlebar position, brake and clutch levers
  • On Board computer
  • 12V & USB Power Sockets
  • Immobiliser
  • Hand Guards
  • Ergonomic Switchcubes and 5-way Joystick

The XCX is a ride with real off-road poise and capability. The front 21-inch wheel and more responsive, mass-optimised, Triumph 800 Triple engine are just two of the many features, innovations and modifications that have been designed into the latest generation of this thrilling off-road adventurer.

As soon as you leave the beaten track, you’ll benefit from the new shorter ratio first gear, giving you more low-speed traction and instant responsiveness right where you need it most. The new ‘Off-Road Pro’ riding mode allows you to experience the adventure even more by turning off the ABS and traction control. In addition, category-defining core technologies include ride-by-wire throttle and an all-new Brembo front braking system.

Tear up the maps, your adventure just got bigger – and even better.

Max Power EC 95 PS/ 94 bhp (70 kW) @ 9,500 rpm
Max Torque EC 79Nm @ 8,050rpm
Brakes Front Twin 305 mm floating discs, Brembo 2­piston sliding calipers, Switchable ABS
Brakes Rear Single 255 mm disc, Nissin single piston sliding caliper, Switchable ABS
Front Suspension WP 43 mm upside down forks, with adjustable rebound and compression damping, 220 mm travel
Rear Suspension WP monoshock with remote oil reservoir, hydraulically adjustable preload, 215 mm rear wheel travel

Engine and Transmission

  • type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
  • capacity 800cc
  • bore 74.05mm
  • stroke 61.94mm
  • system Multipoint sequential electronic fuel injection
  • exhaust Stainless steel 3 into 1, high level stainless steel silencer
  • final drive O  ring chain
  • clutch Wet, multi-plate
  • gearbox 6-speed
  • oil capacity 3.7L

Chassis, Running Gear and Displays

  • frame Tubular steel trellis frame
  • swingarm Twin-sided, cast aluminium alloy
  • Front Wheels 36-spoke 21 x 2.5in, aluminium rim
  • Rear Wheels 32-spoke 17 x 4.25in, aluminium rim
  • Front Tyres 90/90-21
  • Rear Tyres 150/70 R17
  • Front Suspension WP 43mm upside down forks, adjustable rebound and compression DAMPING, 220mm travel.
  • Rear Suspension WP monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 215mm rear wheel travel
  • brakes front Twin 308mm floating discs, Nissin 2-piston sliding calipers, Switchable ABS
  • brakes rear Single 255mm disc, Nissin single piston sliding caliper, Switchable ABS
  • front brake master cylinder Nissin master cylinder, 14mm diameter
  • instrument display and functions LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, three rider modes (Road/Off-road/Rider configurable) and clock.
  • other features and benefits Coded key immobiliser, Cruise control, Riding Modes, switchable Traction Control and switchable ABS as standard. Adjustable handlbar position and rider seat height. Hazard light switch on instrument panel. Self cancelling indicators. Adjustable clutch and brake levers. Radiator guard, handguards, centre stand, auxiliary 12V power socket, engine protection bars and aluminium sump guard fitted as standard equipment.

Dimensions and Capacities

  • length 2215mm
  • width handlebars 851 mm
  • height without mirror 1390mm
  • seat height 840 – 860 mm (820 – 840 mm with Accessory Low Seat)
  • wheelbase 1545mm
  • rake 24.3º
  • trail 95.3mm
  • tank capacity 19l
  • wet weight 221 kg
  • dry weight 196 kg

Performance

  • max power ec 95PS (70KW) @ 9250
  • max power ec kw KW @
  • max torque ec 79NmNM @ 7850

Fuel Consumption

  • 56mph/90kph 77.4mpg
  • 75mph/120kph 53.6mpg
  • mixed riding 65mpg* figures obtained according to the emissions procedure gtr2 of the world motorcycle test cycle (wmtc)
