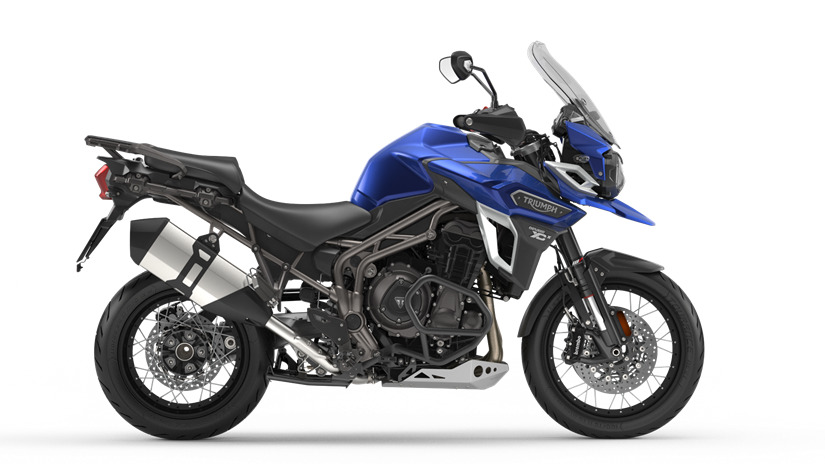

Triumph Tiger Explorer XCX 2017 – OTR Price: From £14,300
Colour Options:
Jet Black
Crystal White +£125
Lucerne Blue +£125
Additional to Tiger Explorer XC
- 2 x 12V power socket
- Advanced On Board computer
- Aluminium sump guard
- cornering optimised ABS and Traction Control
- Cruise Control
- Engine Protection Bars
- Hand Guards
- Inertial Measurement Unit (IMU)
- “Off Road” riding mode
- Self-cancelling LED indicators
- Stainless radiator guard
- Triumph Semi Active Suspension (TSAS)
Built for all terrain, the all-new Tiger Explorer XCX is the ultimate go anywhere, do anything transcontinental motorcycle. The Tiger Explorer XCX packs immense power and linear torque from its signature 1215cc triple engine and is optimised for all terrain with spoked wheels for tubeless tyres, ABS, Traction control and, Brembo monobloc 4-piston radial callipers at the front, and a single 282mm disc, 2-piston sliding calliper at the rear. Triumph’s electronically controlled semi-active suspension system (TSAS) continuously adjusts the suspension settings as you ride, delivering the best control, comfort and riding experience on any surface.
Three new selectable Rider modes; Road, Rain and Off-Road, incorporate different setting for ABS, traction control and throttle maps, each optimised to suit the selected mode for maximum control, comfort and rider engagement.
With an electronically adjustable screen, hand guards and heated grips as standard, the Tiger Explorer XCX is the true transcontinental adventure bike.
| Max power | 139 PS/137 Bhp (102 kW) 9,300 rpm |
|---|---|
| Max torque | 123 Nm 6,200 rpm |
| Brakes Front | Twin 305 mm floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS |
| Brakes Rear | Single 282mm disc, Nissin 2-piston sliding caliper, switchable ABS |
| Front Suspension | WP 48 mm upside down forks, electronically adjustable damping, 190mm travel (168 mm low seat version) |
| Rear Suspension | WP monoshock, electronically adjustable semi active damping, 193mm wheel travel (158 mm low seat version). Automatic preload adjustment |
ENGINE AND TRANSMISSION
| Type | Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder |
|---|---|
| Capacity | 1215cc |
| Bore Stroke | 85 mm / 71.4 mm |
| Compression | 11.0:1 |
| Max power | 139 PS/137 Bhp (102 kW) 9,300 rpm |
| Max torque | 123 Nm 6,200 rpm |
| System | Ride by Wire, fuel injection |
| Exhaust | Stainless steel 3 into 1 header system, side mounted stainless steel silencer |
| Final drive | Shaft drive |
| Clutch | Wet, multi-plate hydraulically operated, torque assist |
| Gearbox | 6-speed |
CHASSIS
| Frame | Tubular steel trellis frame |
|---|---|
| Swingarm | Single-sided, cast aluminium alloy with shaft drive |
| Front Wheels | 32 spoke, aluminium rim, for tubeless tyres, 19 x 3.0in |
| Rear Wheels | 32 spoke, aluminium rim, for tubeless tyres, 17 x 4.5in |
| Front Tyres | 120/70 R19 |
| Rear Tyres | 170/60 R17 |
| Front Suspension | WP 48 mm upside down forks, electronically adjustable damping, 190mm travel (168 mm low seat version) |
| Rear Suspension | WP monoshock, electronically adjustable semi active damping, 193mm wheel travel (158 mm low seat version). Automatic preload adjustment |
| Brakes Front | Twin 305 mm floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS |
| Brakes Rear | Single 282mm disc, Nissin 2-piston sliding caliper, switchable ABS |
| Instrument Display and Functions | Instrument pack with analogue tachometer, fixed segment LCD display and multifunction dot matrix LCD display. Fixed segment LCD display: speedometer, fuel gauge, gear position indicator, service indicator, clock, ambient air temperature, coolant temperature, cruise control status and set speed. Multifunction DOT matrix LCD display: three Riding Modes (Road, Rain, Off Road), windscreen adjustment, TSAS setting, Trip computer (journey distance, journey time, average fuel consumption, average speed), motorcycle information (odometer, range-to-empty, instantaneous fuel consumption, TPMS ready), setting menu, heated grips status, heated seat status ready. |
DIMENSIONS AND WEIGHTS
| Width Handlebars | 830 mm (930 mm with handguards) |
|---|---|
| Height Without Mirror | 1400 mm (1470 mm with higher screen position) |
| Seat Height | 837-857 mm (Low seat version: 785 – 805 mm) |
| Wheelbase | 1520 mm |
| Rake | 23.1˚ |
| Trail | 99.2 mm |
| Dry Weight | 253 Kg (251 Kg low seat version) |
| Tank Capacity | 20 Litres |
